Relax Dryer(Tensionless Drying Machine)

2017-07-04 18:01:25   Scource:Dezhou Deguan TextileMachinery Co.,Ltd.    Click:
              \


                                                                               Introduction
The relax dryer machine is used for tubular and open fabric with oil/steam heating source. It has three layes, which is proved by customer with most reasonable and suitable design, bettere than other single/double/five/seven layers dryer machine. Our machine's each layer could be run under different speed controlled by inverter. The fabric could be kept in loosen status without any tension during the drying process inside of chamber.
Based on the different fabric width and production requirement, we could supply different models with different chambers as following: DGHG-2000mm/2400mm/2800mm/3200mm/3600 mm, with 2-8chambers.
Based on the different heat sources, we could supply the following models with 3 heating sources:
1. Steam 2. Thermal Oil 3.Natural Gas
Our machines are equipped with conveyor belt made of Teflon material, it could bear high temperature and not
pollute the fabric with non-staining.

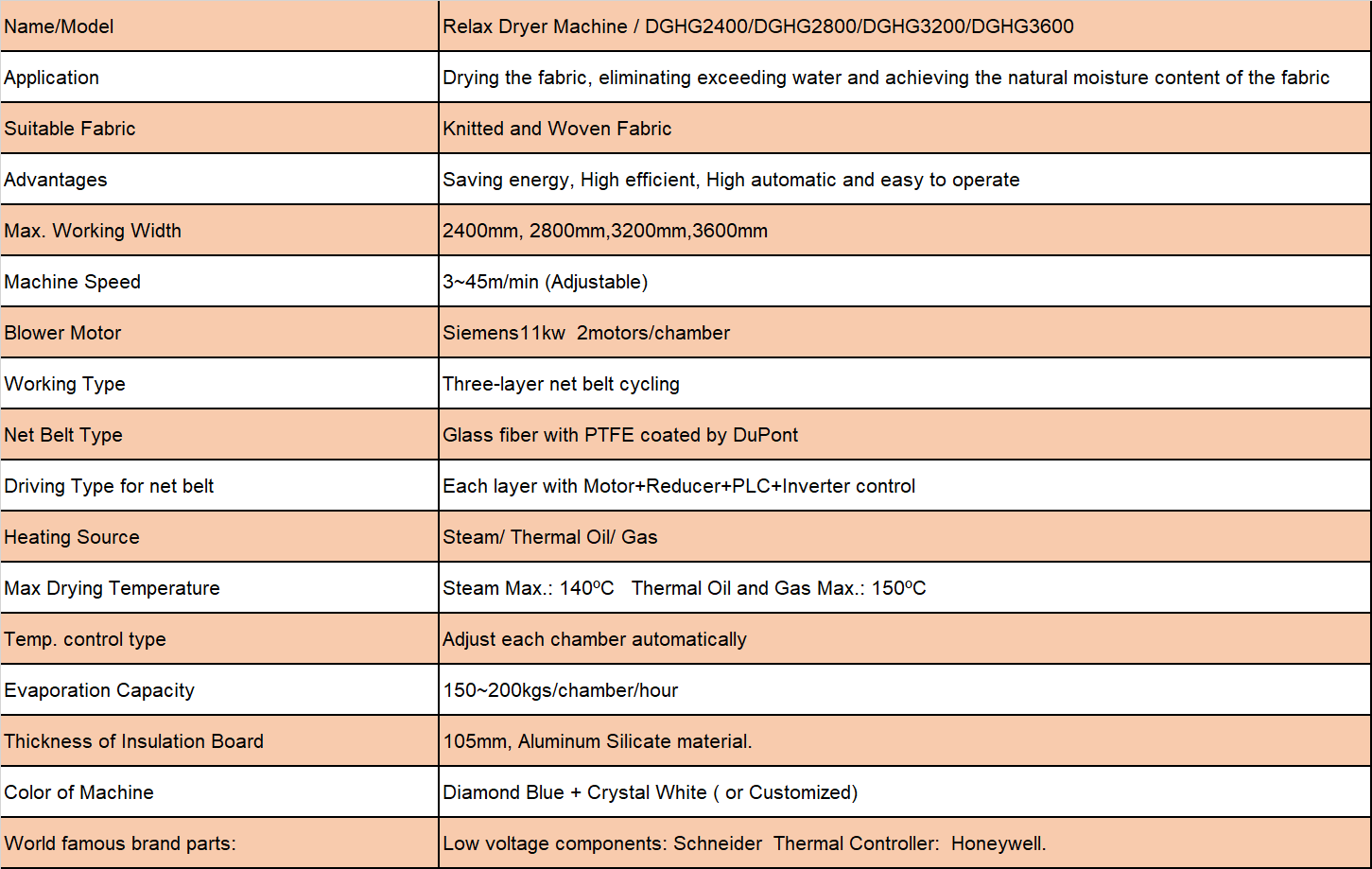

                                                        Basic Info & Technical Data

Model DGHG2600
Name Relax Dryer Machine
Application Drying the fabric, eliminating exceeding water and achieving the natural moisture content of the fabric
Suitable Fabric Knitted and Woven Fabric
Layout Reference Above Layout
Max. Working Width 2600mm
Machine Speed 0~30m/min
Motor 11kw/motor   2motors/chamber,  Siemens(standard)
Chamber Nos 2 ~ 10sets chambers
Power Supply 380V·3P·50HZ (standard) /220V·3P·60HZ(optional)
Weight of Machine ≈13 - 45Ton
Working Type  Three-layer belt
Net Belt Type Glass fiber with PTFE coated by DuPont
Driving Type for net belt PLC+Inverter control
Heat-setting Type Oil/Gas/Steam
Max Drying Temperature 140~180ºC
Temp. control type Automatically each chamber's temperature is controlled
Length of Chamber 2.1M
Thickness of Insulation Board 105mm
Machine Dimension 8300x4500x3450mm (LxWxH)
Comments: Key components and parts apply Schneider/Honeywell/Siemens/Bealz/ etc brand products..


Advantage:
  • We possess the upgrade and design ability with our professional technical team, your customized design could be changed into drawing.
  • With advanced technology and best quality, we make sure that you can get satisfied products based on our pleasant cooperation.
* Video of Sample Machine could be offered according to your request.


\
